Reciprocating Compressor
The reciprocating compressor units designed and manufactured by Dondel Hydrogen Energy have achieved high domestication, with a maximum pressure of 90 MPa and a maximum displacement of 80,000 Nm³/h. Their customized designs better meet the actual on-site requirements of customers.
Max pressure
90 MPa
Max displacement
80000Nm³/h
Core Advantage
Structure performance
· Horizontal opposed configuration with dual-acting cylinders ensures smooth operation. · Modular integration reduces installation costs by 15% compared to similar products. · Multi-stage compression ratio precision control reduces energy consumption by 20%.
Energy efficiency performance
· Closed thermal cycle system with industry-leading thermal efficiency. · Supports waste heat recovery interface, boosting overall energy efficiency by 8%.
Economic advantage
· Core components with a lifespan of 100,000 hours, reducing maintenance costs by 40%. · Supports high-frequency start-stop and load adjustment range 0-120%. · Standardized quick-release design, extended overhaul cycle.
Environmental adaptation
· Non-destructive output at-40°C to 60°C and 4000 meters altitude. · Modular retrofitting enables compatibility with over 20 gas media.
Intelligent O&M
· Industrial IoT platform support enables self-diagnosis of faults. · Real-time monitoring of key parameters (5000+ data points per second). · Intelligent control system for 24/7 automatic operation.
Customization capability
· Offers over 20 differentiated renovation solutions. Supports combined configurations of pressure, gas volume, and medium. · Scalable intelligent interconnection interface.
Parameters Table of reciprocating Compressor
| Product model | Intake pressure (MPa) | Exhaust pressure (MPa) | Volumetric flow rate (Nm³/h) | Crankshaft speed (r/min) | Motor power (KW) |
| 4M15-11.2/16-100 | 1.6 | 10 | 10000 | 420 | 1000 |
| 2D4.5-5.35/13.55-22.5 | 1.355 | 2.25 | 4000 | 740 | 132 |
| DW-1.0/13.5-25.3 | 1.35 | 2.53 | 750 | 740 | 37 |
| DW-8.6/24.9-37.2 | 2.49 | 3.72 | 12000 | 740 | 315 |
| 4M25-22.48/16-100 | 1.6 | 10 | 20000 | 420 | 2000 |
| 4M15-7.44/37.5-125 | 3.75 | 12.5 | 15000 | 420 | 1000 |
| 4M25-84.9/17-30 | 1.7 | 3 | 80000 | 420 | 2100 |
| 4M15-26.56/19.5-38.8 | 1.95 | 3.88 | 28500 | 420 | 1000 |
| 4M15-25.82/5-45 | 0.5 | 4.5 | 8000 | 420 | 900 |
Reciprocating piston compressor: Application case

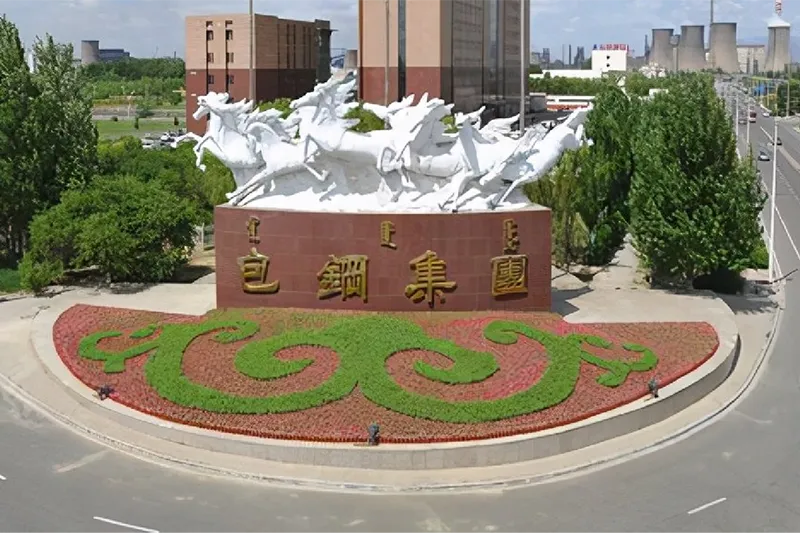

Baogang Co., Ltd. coke by-product technology upgrading project
Background and significance:
The project will construct a 100,000-ton/year crude benzene hydrotreating unit, including pre-distillation column, stabilization column, main reactor and other production equipment, as well as supporting facilities such as circulating water system and fire protection system.
Through technological upgrades, this project will enhance Baotou Steels resource utilization efficiency and environmental performance in coke by-products, driving the company toward refined and efficient operations.
Supplying products and services: 2 reciprocating piston compressors
Project Significance: Our two reciprocating piston cycle gas compressors enable pressurized recycling of circulating gas, stabilize hydrogenation system pressure, and adapt to process conditions. This helps reduce operational costs, achieve green and low-carbon goals, ensure stable production capacity and product quality, while demonstrating the compatibility and reliability of our equipment in industrial gas recycling compression.
