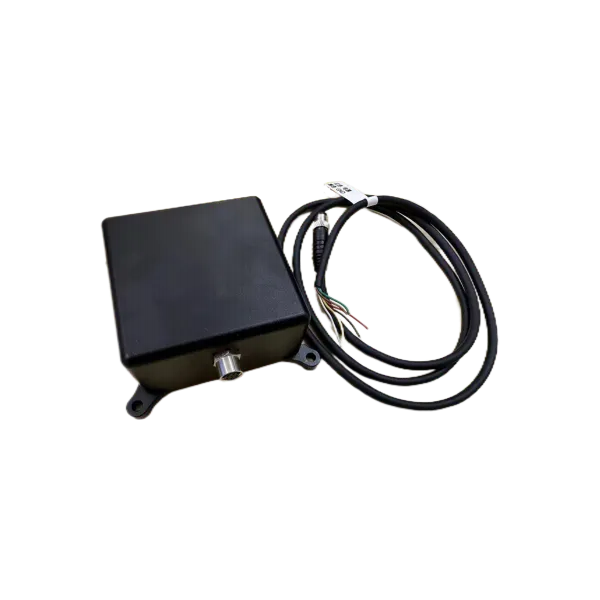

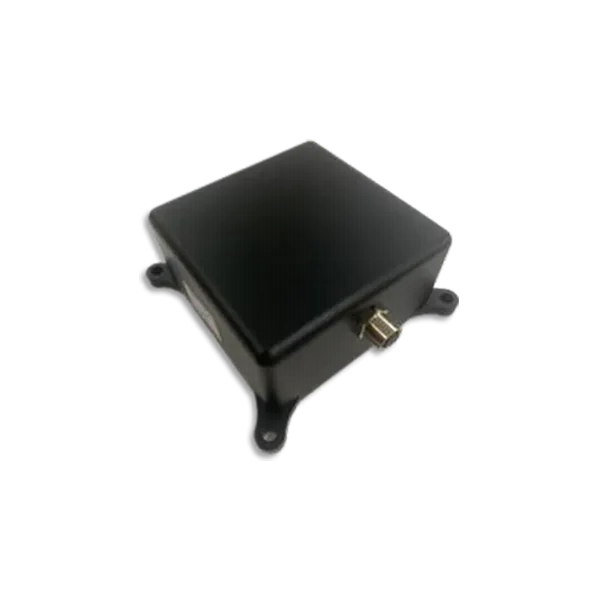

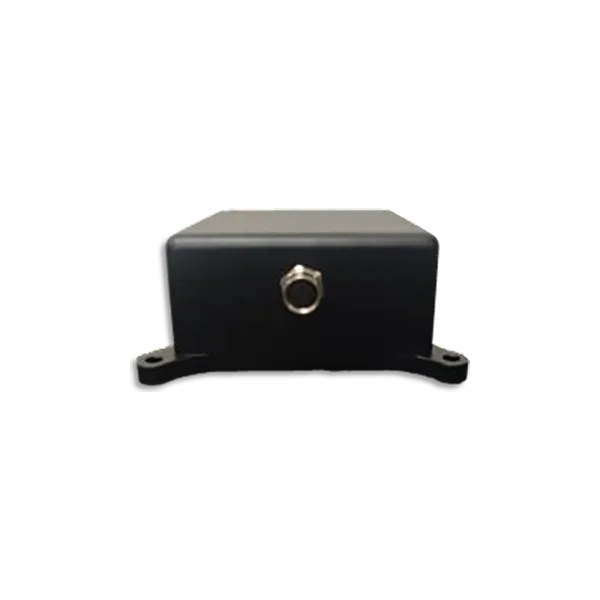

Wave Sensor
Wave Height Range and Accuracy
Wave height measurement:
- Range: (0-25)m
- Measurement Accuracy: <±3%
- It ensures accurate capture of wave height changes
Wave Period Range and Accuracy
Wave period measurement:
- Range: (1.5-25)s
- Measurement Accuracy: <±0.1s
- It provides a guarantee for the accurate evaluation of wave period
Wave Direction Range and Resolution
Wave direction measurement:
- Range: 0-360°
- Resolution ratio: 1°
- The direction ofthe wave can be recorded in detail
Overall Power Consumption and
Sampling Frequency
- The power consumption is less than 0.5W
- Operating at a sampling frequency of 4 Hz
- Ensures low energy consumption of the equipment, while maintaining continuity and
- Accuracy of data acquisition.
Wave Sensor Data Sheet
| Material | Stainless steel 316L |
| Dimension | Product: 6.5cm*6cm*2.5cm
Package: 19cm*15cm*8cm |
| Weight | Net weight: 0. 1kg
Total weight: 0.56kg |
| Color | Blue |
| Wave Height | Range: (0-25)m
Accuracy:<±3% |
| Wave Period | Range: (1.5-25)s
Accuracy:<±0. 1s |
| Wave Direction | Range: (0-360)
Resolution ratio: 1 |
| Overall Power Consumption and
Sampling Frequency |
Power consumption: ＜0.5W
Sampling frequency: 4Hz |
Wave Spectrum Sensor
According to the classical wave theory, by measuring the motion attitude and acceleration of the carrier, the wave height, wave period, wave direction, wave energy density spectrum and wave direction spectrum of the wave are calculated. The wave spectrum sensor features high measurement accuracy, low power consumption, small size, light weight and stable reliability.
Technical indicators
(1) The wave height: (0 m to 30 m), measuring range measurement accuracy (±5% (0.1 + x measurements) m);
(2) The wave period: measuring range (2.0 s ~ 25 s), measurement accuracy (±0.5 s);
(3) The wave direction: measuring range (0 ° ~ 360 °), measurement accuracy (±5 °).
Get Free Quote of Wave Sensor
Wave Spectrum Sensor Data Sheet
| Material | Stainless steel 316L |
| Dimension | Product: 8.5cm*8.5cm*3.5cm
Package: 19*15*8cm |
| Weight | Net weight: 0.28kg
Total weight: 0.68kg |
| Color | Black |
| Wave Height | Range: (0-30)m
Accuracy:±(0. 1+3%xH) m |
| Wave Period | Range: (2-25)s
Accuracy: ±0.5s |
| Wave Direction | Range: (0-360)
Accuracy: ±3 |
| Wind/Surge Height | Range: (0-30)m
Accuracy:±(0. 1+3%xH) m |
| Wind/Surge Direction | Range: (0-360)
Accuracy: ±3 |
| Wind/Surge Period | Range: (2-25)s
Accuracy: ±0.25s |
